| Parameter | Specification |
|---|---|
| Production Years | 2006 – 2015 |
| Engine Type | 998cc Liquid-cooled, 20-valve, DOHC Inline-4 |
| Engine Oil | SAE 10W-40 (API SG+ / JASO MA) – 3.1 L |
| Tire Dimensions | F: 120/70 ZR 17 / R: 190/50 ZR 17 |
| Tire Pressure | F: 2.5 bar (36 psi) / R: 2.9 bar (42 psi) |
| Battery Type | YTZ14S |
| Spark Plugs | NGK CR9EK (Gap: 0.6–0.7 mm) |
Historical Engineering Highlight: The Yamaha FZ1 FAZER (RN16) represents one of the final high-performance applications of Yamaha’s legendary “Genesis” 5-valve-per-cylinder head design. Derived directly from the 2004-2006 YZF-R1, the RN16 utilized a heavier crankshaft and revised fuel injection mapping to transform a peaky supersport engine into a broad-shouldered sport-touring powerhouse.
Technical Overview

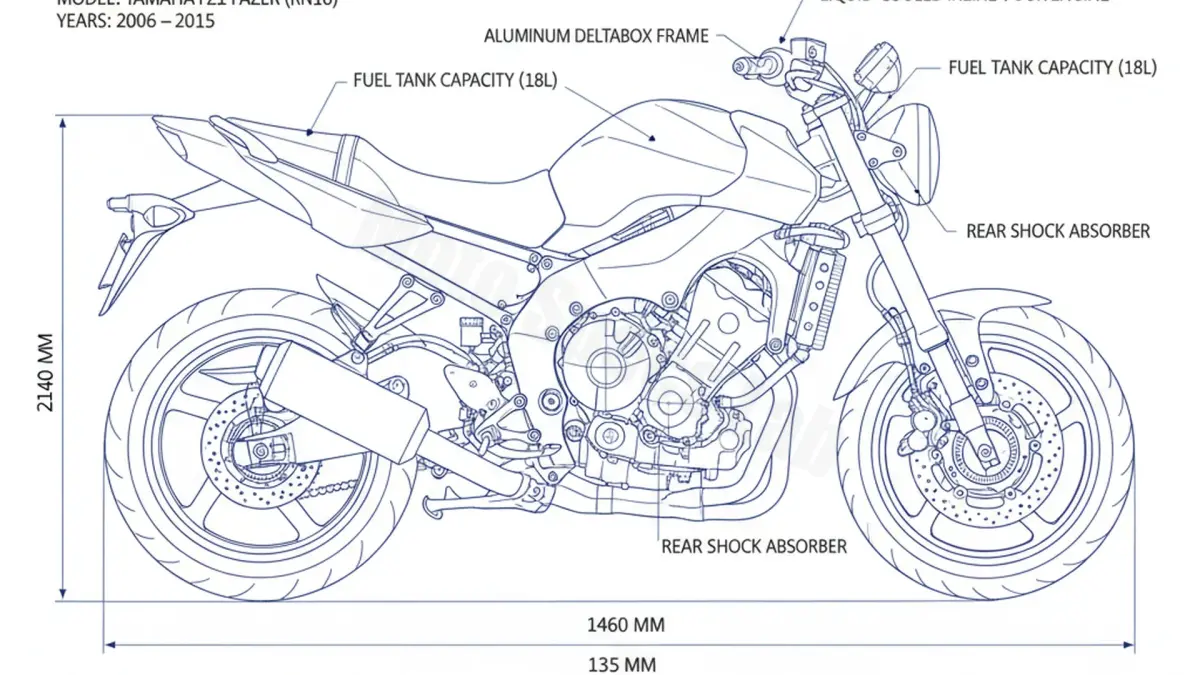

The RN16 chassis marked a radical departure from the previous steel-framed FZS1000. Utilizing a controlled-fill die-cast aluminum frame, the FZ1 FAZER achieved significantly higher torsional rigidity while reducing weight. The engine serves as a stressed member, contributing to a sharp-handling package that bridges the gap between a naked streetfighter and a long-distance tourer.
The 20-Valve Powerplant
While the R1 provided the architecture, Yamaha engineers tuned the FZ1 for real-world usability. The 20-valve layout (three intake, two exhaust) was designed to optimize gas flow at high RPMs, though early 2006 models were noted for a “snatchy” throttle response. This was largely addressed in 2007+ models through revised ECU mapping. Tech analysts at MotoSpecsLab emphasize checking the rotor/stator assembly on pre-2012 models, as the original rotor magnets were known to delaminate over time.
Maintenance Guide
Lubrication System
For optimal clutch performance and engine longevity, use a high-quality 10W-40 oil meeting JASO MA standards. The total capacity for an oil and filter change is 3.1 liters. We recommend a change interval of 6,000 miles (10,000 km) or annually.
Ignition and Electrical
The FZ1 utilizes NGK CR9EK dual-ground electrode plugs. Ensure the gap is set precisely between 0.6 and 0.7 mm. The electrical system is anchored by the YTZ14S battery; given the high compression ratio, maintaining a healthy CCA (Cold Cranking Amps) is vital for reliable starting.
Chassis & Tires
The RN16 is sensitive to tire wear due to its 190-section rear. Maintaining the factory-specified 2.5 bar front and 2.9 bar rear pressure is critical to prevent “cupping” and to maintain the bike’s neutral steering characteristics. For riders frequently carrying luggage or pillions, the 2.9 bar rear pressure is non-negotiable for stability.
Expert Verdict
The Yamaha FZ1 FAZER RN16 remains a benchmark in the liter-class sport-touring segment. Its blend of R1-derived mechanical soul and upright ergonomics makes it a versatile platform for both track days and transcontinental journeys. At MotoSpecsLab, we rate the RN16 4.7/5 for its reliability and engineering heritage.
