| Attribute | Specification |
|---|---|
| Production Years | 1988–2003 |
| Engine Type | Evolution V-Twin (Air-Cooled) |
| Oil Capacity | 2.8 Liters (2.96 US qt) |
| Front Tire | 100/90-19 57H |
| Rear Tire | 130/90-16 67H |
| Spark Plug | HD-6R12 (Gap: 0.97–1.09 mm) |

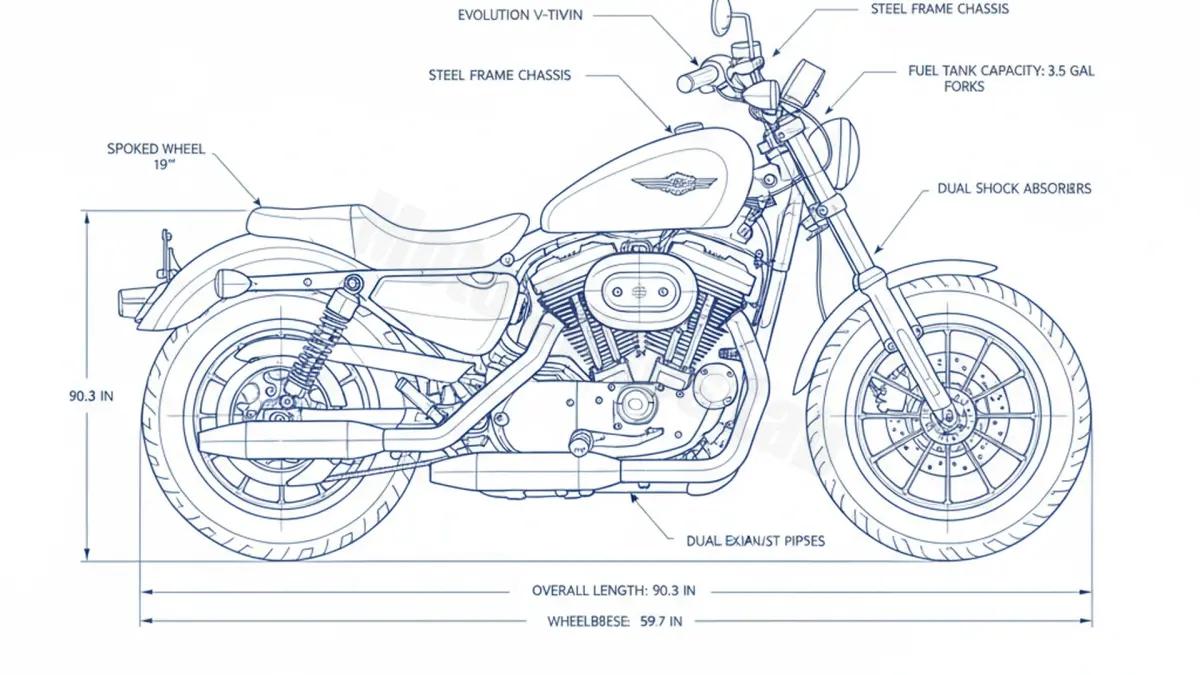

The Harley-Davidson XLH1200 represents a pivotal era for the Sportster family, marking the 1988 transition where the legendary 1200cc Evolution engine fully superseded the older Ironhead architecture. An engineering highlight of this specific era (1988–2003) is the introduction of the five-speed transmission in 1991, which significantly improved highway cruising capabilities and reduced mechanical vibration compared to the previous four-speed gearboxes.
Engineering Overview
The XLH1200 utilizes an air-cooled, 45-degree V-Twin Evolution engine. Known for its 'Blockhead' design, this engine features aluminum heads and cylinders which improved heat dissipation over its predecessors. The 1988–2003 models are particularly sought after for their 'rigid mount' frame design, offering a direct mechanical connection between the rider and the machine before the introduction of rubber-mounted engines in 2004.
Maintenance Guide
Lubrication System
Proper lubrication is critical for the longevity of the air-cooled Evolution engine. The total oil capacity is 2.8 Liters. Selection should be based on operating environment:
- Standard: SAE 20W-50
- Hot Weather (>60°F): SAE 50
- Extreme Heat (>80°F): SAE 60
- Cold Weather (<40°F): SAE 10W-40
Tires and Chassis
The XLH1200 maintains a classic stance with a 19-inch front and 16-inch rear wheel configuration. Maintaining correct tire pressure is essential for handling stability:
- Front (100/90-19 57H): 2.1 bar (30 psi)
- Rear (130/90-16 67H): 2.5 bar (36 psi) for solo riding; 2.8 bar (40 psi) for two-up riding.
Electrical System
The battery requirements differ based on the production year. Ensure the correct terminal configuration and Cold Cranking Amps (CCA):
- 1988–1996: Part No. 65991-82B
- 1997–2003: Part No. 65989-97D
Technical FAQ
What is the recommended spark plug gap?
For the HD-6R12 plugs, the gap should be set between 0.97 mm and 1.09 mm to ensure optimal combustion efficiency.
How often should the oil be changed?
While Harley-Davidson traditionally suggests longer intervals, MotoSpecsLab recommends an oil and filter change every 2,500 to 3,000 miles given the thermal stress on air-cooled engines.
