| Component | Specification |
|---|---|
| Engine Model | ZXT00C / ZXT00CC |
| Engine Oil | SAE 10W-40 (3.3 L) |
| Front Tire | 120/70 ZR 17 |
| Rear Tire | 190/50 ZR 17 |
| Spark Plug | NGK CR9EIA-9 |
| Battery | YTX9-BS |
The Engineering Legend: A 1:1 Power-to-Weight Pioneer

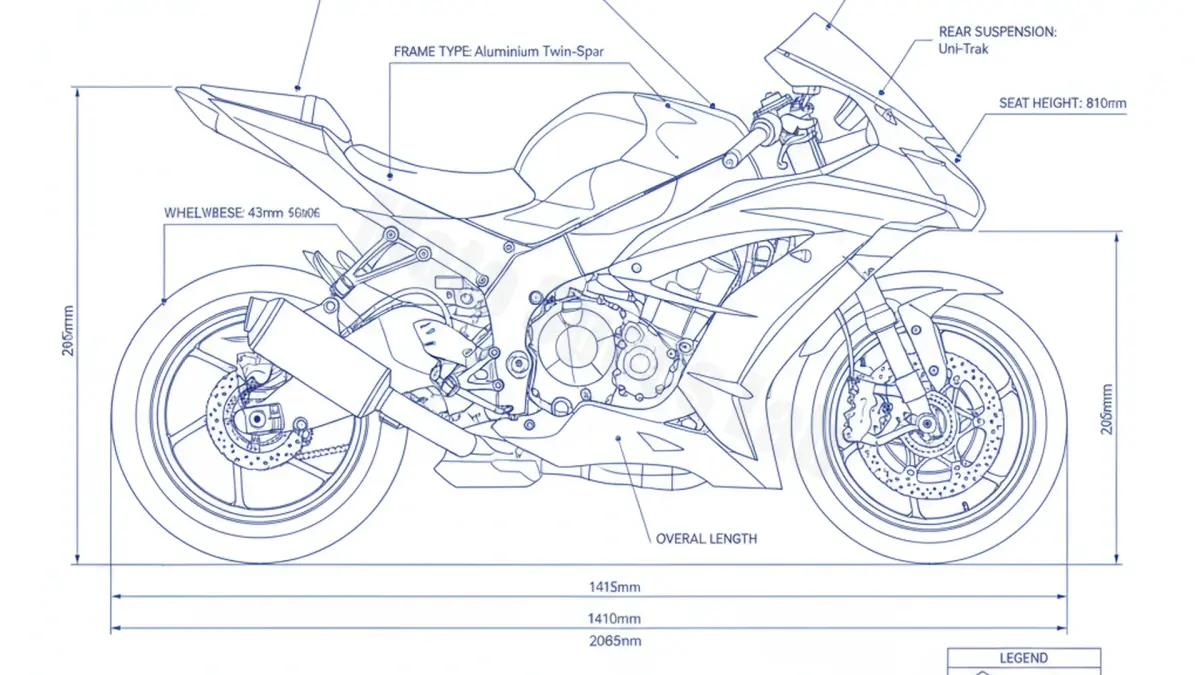

The 2004-2005 Kawasaki ZX-10R, known internally as the ZXT00C, is often referred to by enthusiasts as the “Widowmaker.” This moniker stems from its revolutionary engineering: it was one of the first production motorcycles to achieve a near 1:1 power-to-weight ratio (crank horsepower to dry weight). Utilizing a ultra-short 1,385mm wheelbase and a stacked gearbox design, Kawasaki engineers prioritized agility and aggressive power delivery over rider aids, making it a pure mechanical masterpiece in the liter-bike category.
Technical Maintenance Specifications
Maintaining the high-revving performance of the ZXT00C requires strict adherence to technical tolerances. At MotoSpecsLab, we emphasize the use of high-quality lubricants and precise ignition components to preserve the integrity of the 998cc inline-four engine.
Lubrication System
The ZXT00C requires 3.3 liters of engine oil. For optimal clutch performance and engine protection, use SAE 10W-40. It is imperative that the oil meets JASO MA standards to ensure the wet clutch does not slip. Acceptable API classifications include SE, SF, SG, SH, SJ, or SL.
Ignition and Electrical
The ignition system relies on Iridium-tipped NGK CR9EIA-9 spark plugs. The gap must be precisely set between 0.8–0.9 mm to ensure consistent combustion under high compression. The electrical system is supported by a YTX9-BS battery, which provides the high cold-cranking amps (CCA) necessary for the high-compression starter motor.
Chassis and Contact Patch
Handling precision is dictated by tire choice and pressure. The standard configuration uses a 120/70 ZR 17 front and a 190/50 ZR 17 rear. For street performance and longevity, Kawasaki specifies a front pressure of 2.5 bar (36 psi) and a rear pressure of 2.9 bar (42 psi).
Expert Verdict
The ZXT00C represents the pinnacle of analog superbike design. While later generations introduced traction control and ABS, the 2004-2005 models remain the choice for purists seeking an unfiltered connection between the throttle and the asphalt. Proper maintenance of the cooling system and valve clearances (every 24,000 km) is vital to keeping this legendary machine on the road.
