| Model Code | AP1711 |
|---|---|
| Production Years | 1998 – 2004 |
| Engine Oil | SAE 10W-40 JASO MA/MA2 (0.95 L) |
| Tires (F/R) | 110/90-16 59P / 130/90-15 66P |
| Spark Plug | NGK DR8EA (Gap: 0.6 – 0.7 mm) |
| Battery | YTX7L-BS |
The Suzuki GZ 125 Marauder, specifically the AP1711 variant produced between 1998 and 2004, holds a unique place in motorcycling history for its implementation of the Twin-Dome Combustion Chamber (TDCC). This engineering highlight was designed to maximize torque at lower RPMs, providing the 124cc single-cylinder engine with a surprisingly linear power delivery that mimics the feel of larger-displacement cruisers.
Engineering Overview

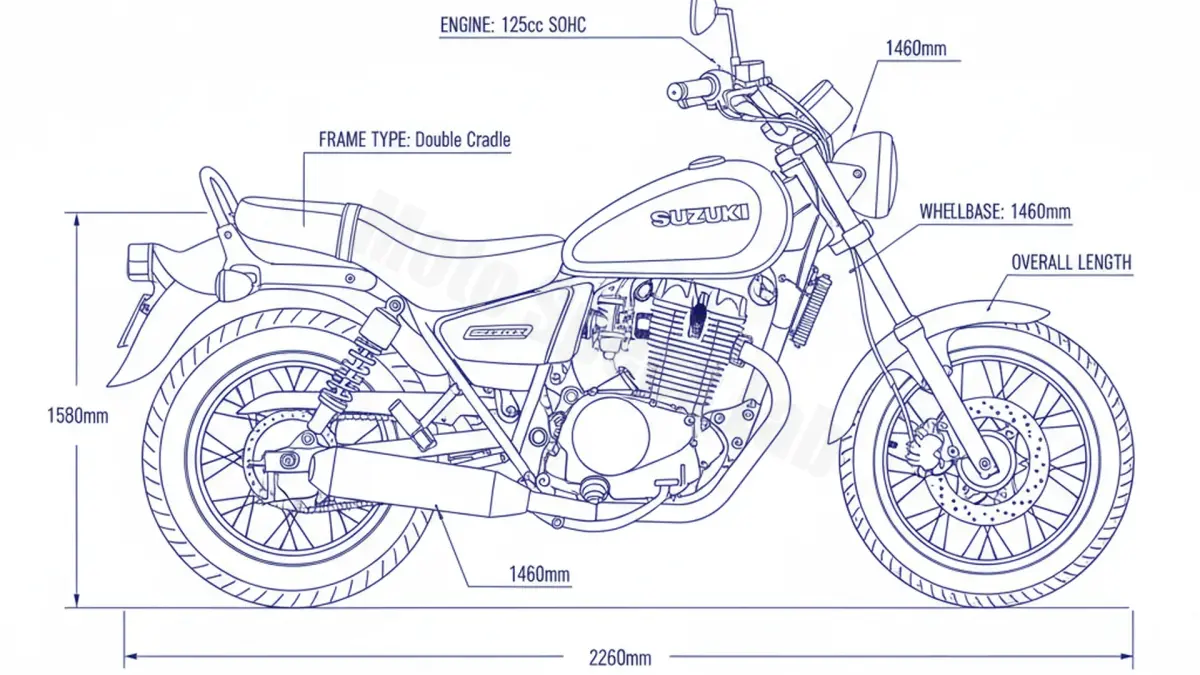

At the heart of the Marauder is a bulletproof air-cooled, SOHC, four-stroke engine. While many 125cc machines of the era focused on high-revving performance, Suzuki engineered the AP1711 for longevity and ease of use. The chassis features a low-slung cruiser geometry that provides exceptional stability for novice riders, making it a staple of the European learner market for over a decade.
Maintenance Guide
Lubrication System
The GZ 125 is highly sensitive to oil quality due to its air-cooled nature. We recommend using a high-quality SAE 10W-40 meeting JASO MA/MA2 standards to ensure the wet clutch operates without slipping. The total capacity is a modest 0.95 liters, making frequent oil changes an affordable way to extend engine life.
Ignition and Electrical
For optimal combustion, the NGK DR8EA spark plug must be gapped precisely between 0.6 and 0.7 mm. Fouled plugs are a common cause of hard starting in this model. The electrical system is powered by a YTX7L-BS battery; ensure terminals are clean and tight to support the electric-start system.
Tires and Handling
The Marauder uses a unique 16-inch front and 15-inch rear wheel combination. Maintaining correct pressures is critical for cornering stability. The front should be set to 1.75 bar (25 psi). The rear requires 2.00 bar (29 psi) for solo riding, but must be increased to 2.25 bar (33 psi) when carrying a pillion to prevent sidewall deformation.
MotoSpecsLab Verdict
The Suzuki GZ 125 Marauder remains a benchmark for the ‘mini-cruiser’ segment. Its mechanical simplicity is its greatest strength, offering a platform that is as easy to maintain as it is to ride. For owners and restorers, adhering to the specific AP1711 tolerances ensures this classic learner bike continues to provide reliable service.
