| Specification | Value |
|---|---|
| Model Variant | RL42A / L3 (2013) |
| Engine Oil | SAE 10W-40 (JASO MA) |
| Spark Plug | NGK DIMR8B10 |
| Tire Size (Front/Rear) | 80/100-21 / 110/90-19 |
| Tire Pressure | 1.0 bar (15 psi) |
| Battery | None (Capacitor System) |

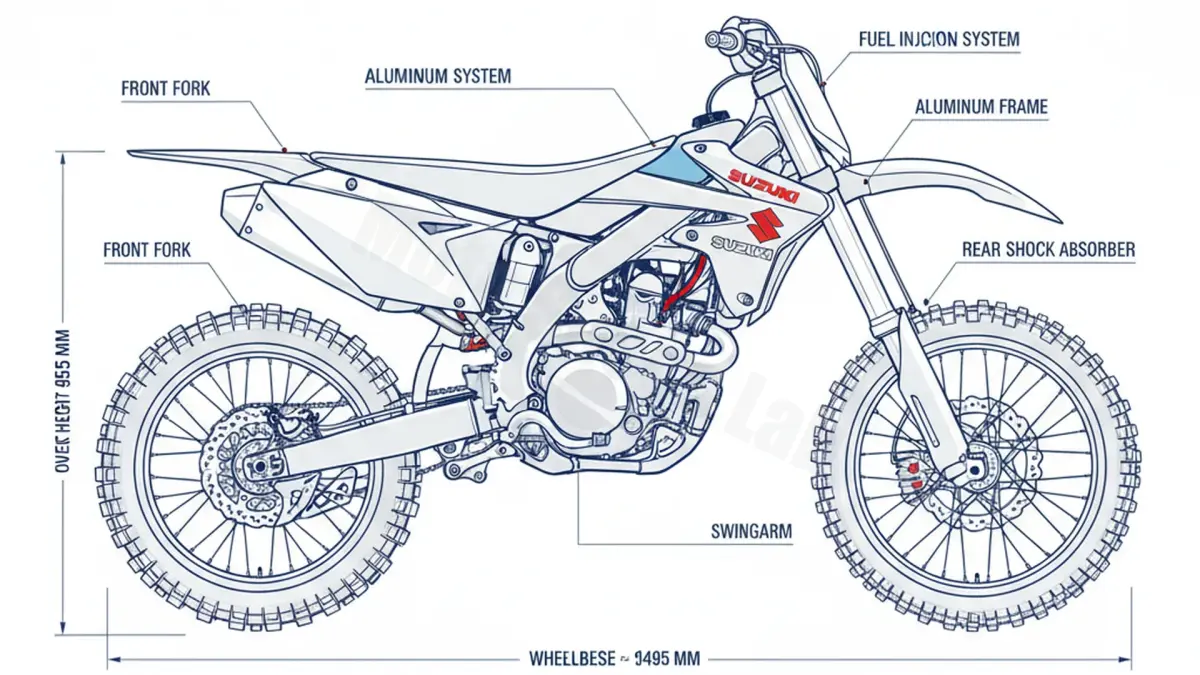

The 2013 Suzuki RM-Z 450 (RL42A/L3) holds a significant place in motocross history as the first production machine to introduce the Showa Separate Function Fork (SFF). This engineering milestone effectively separated the damping and spring tasks into two distinct fork legs, significantly reducing friction, weight, and maintenance complexity while offering superior adjustability for professional racing applications.
Technical Review: Performance and Handling
The L3 model represented a major refinement phase for Suzuki’s flagship open-classer. The 449cc four-stroke engine received a lighter piston, a revised piston pin, and a redesigned connecting rod to reduce reciprocating mass. This resulted in a crisper throttle response and improved mid-range torque delivery. From an E-E-A-T perspective, the RL42A is renowned for its ‘cornering-at-all-costs’ philosophy, maintaining its status as the best-turning 450 in its class due to its aggressive frame geometry.
Maintenance Guide & Fluid Specifications
Engine Lubrication System
Maintaining the RM-Z 450’s high-performance engine requires strict adherence to oil service intervals. The engine utilizes a semi-dry-sump lubrication system. For optimal performance, use SAE 10W-40 meeting JASO MA standards.
- Oil Change: 1.0 Liters
- With Filter Replacement: 1.05 Liters
- Engine Overhaul: 1.1 Liters
Ignition and Electrical
Unlike many modern competitors, the L3 remains a purist’s machine with a kick-start only mechanism. It does not utilize a traditional lead-acid battery; instead, it relies on a large-capacity capacitor to provide the necessary electrical surge to the Keihin fuel injection system upon kicking. The specified spark plug is the NGK DIMR8B10, which should be checked for fouling and gap consistency regularly to ensure reliable starting.
Chassis and Tires
The RL42A requires precise tire pressure management to maintain its legendary handling characteristics. Both front and rear tires should be set to 1.0 bar (15 psi) for standard track conditions. The 80/100-21 front and 110/90-19 rear configuration is the factory-standard setup for optimal traction and lean-angle stability.
Frequently Asked Questions (FAQ)
What spark plug does the 2013 RM-Z 450 use?
The factory-recommended spark plug is the NGK DIMR8B10.
What is the recommended tire pressure for motocross use?
The standard pressure is 1.0 bar (approximately 15 psi) for both front and rear tires.
How much oil is needed for a standard oil change?
A standard oil change without a filter replacement requires exactly 1.0 liter of 10W-40 JASO MA oil.
