| Feature | Specification |
|---|---|
| Production Years | 1975 – 1977 |
| Engine Type | Parallel Twin, 2-Stroke, Air-Cooled |
| Transmission Oil | SAE 10W-30 (JASO-MA) |
| Oil Capacity | 0.85 L (Change) / 1.0 L (Total) |
| Spark Plug | NGK B8HS |
| Battery | 12N5.5-3B |
| Tire Size (Front/Rear) | 2.75 – 18 / 3.00 – 18 |
| Tire Pressure (F/R) | 1.8 bar (26 psi) / 2.1 bar (30 psi) |
The Yamaha RD 125 DX (1E7) holds a unique position in motorcycling history as one of the few machines of its era to successfully miniaturize the performance characteristics of larger ‘Race Developed’ twins into a learner-friendly 125cc package. Notably, the 1E7 was the first in its lineage to standardize the front hydraulic disc brake, a significant engineering leap that provided the stopping power necessary for its high-revving power delivery.
Engineering & Performance
At the heart of the RD 125 DX is a sophisticated 124cc parallel-twin engine utilizing Yamaha’s proprietary ‘Torque Induction’ system. This reed-valve intake design optimized the two-stroke cycle, offering a broader powerband than previous piston-port designs. The 1E7 variant is characterized by its crisp throttle response and a distinct exhaust note that defined the mid-70s urban landscape.
Maintenance Essentials
To maintain the high-performance standards of this vintage twin, precise lubrication and ignition timing are paramount. The transmission requires SAE 10W-30 oil meeting JASO-MA standards to ensure the wet clutch operates without slipping. For routine changes, 0.85 liters are required, though a total rebuild necessitates 1.0 liter.
Ignition health is critical for two-stroke twins. The NGK B8HS spark plug is the factory-specified heat range. Given the nature of vintage two-strokes, regular inspection of the plugs for carbon fouling or oil-fouling is recommended to prevent misfires in one of the two cylinders.

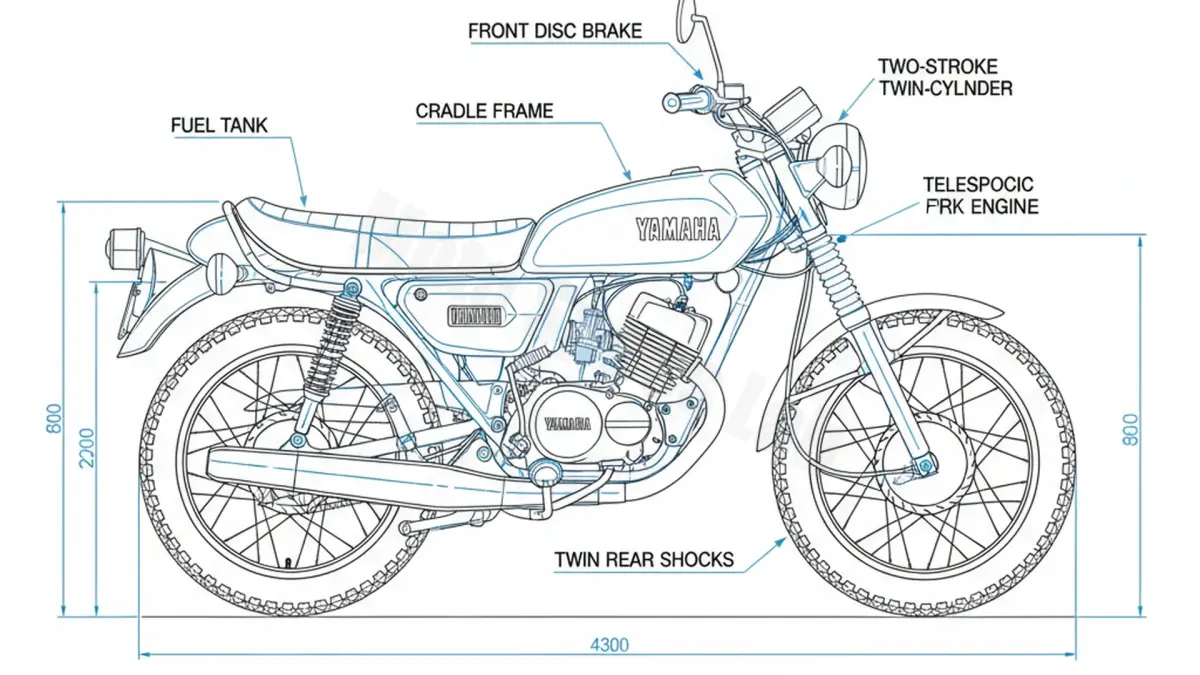

Chassis & Handling
The RD 125 DX features a lightweight double-cradle frame. Its handling is sharp, owing much to its narrow tire profile. The factory recommends 2.75 – 18 for the front and 3.00 – 18 for the rear. Maintaining the correct pressures—1.8 bar (26 psi) front and 2.1 bar (30 psi) rear—is essential to prevent ‘hunting’ during cornering and to ensure stability at the bike’s top speed.
Verdict
The Yamaha RD 125 DX (1E7) remains a highly sought-after classic for collectors and vintage racers alike. Its combination of twin-cylinder complexity and accessible 125cc ergonomics makes it an enduring symbol of Yamaha’s golden era of two-stroke development. Proper maintenance using the specifications outlined above is the key to preserving its legendary performance.
