| Specification | Value |
|---|---|
| Production Years | 1983 – 1986 |
| Engine Oil / Gearbox | SAE 10W-30 JASO MA (0.75 L) |
| Tire Size (Front) | 2.75 – 18 4PR |
| Tire Size (Rear) | 3.00 – 18 4PR |
| Tire Pressure (F/R) | 1.75 bar / 2.0 bar |
| Battery Type | YB3L-B (6V or 12V depending on market/mod) |
| Spark Plug | NGK BR8ES |

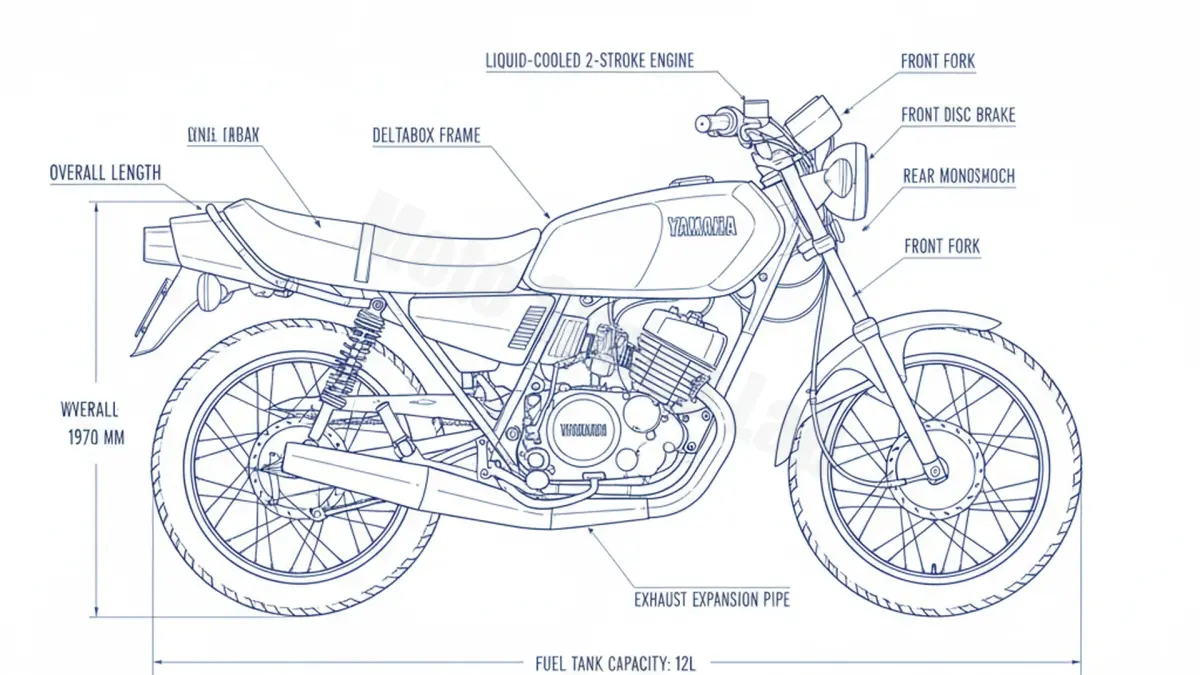

The Yamaha RD 80 LC2, specifically the 30W series, holds a unique place in motorcycling history as one of the first small-displacement machines to successfully democratize liquid-cooling technology derived directly from Yamaha’s Grand Prix racing efforts. Unlike its air-cooled predecessors, the LC2 utilized a sophisticated cooling jacket that allowed for tighter engine tolerances and more consistent power delivery under high-load conditions, a necessity for the high-revving 2-stroke nature of the 80cc class.
Engineering Overview
At the heart of the 30W is a liquid-cooled, single-cylinder two-stroke engine. While the 80cc displacement might suggest a commuter pedigree, the port timing and expansion chamber design were tuned for a surprisingly peaky power band. The frame, a double-cradle steel design, provided significantly more rigidity than the earlier RD80MX models, allowing the LC2 to handle modern (for the time) cornering speeds with stability.
Maintenance Guide
Lubrication System
The RD 80 LC2 utilizes a separate lubrication system (Autolube). However, the gearbox requires 0.75 liters of SAE 10W-30 oil meeting JASO MA standards to ensure the wet clutch does not slip. Regular checks of the 2-stroke oil reservoir are critical, as these engines are sensitive to oil starvation at high RPMs.
Ignition and Electrical
The NGK BR8ES is the standard heat range plug for this model. For sustained high-speed use, some tuners opt for a BR9ES, but for general operation, the 8-range provides the best balance of carbon cleaning and heat dissipation. The YB3L-B battery must be maintained at a full charge to ensure reliable operation of the turn signals and neutral indicators, which are prone to dimming on older 6V/12V hybrid systems.
Chassis and Tires
Maintaining correct tire pressure is vital for the RD 80 LC2’s nimble handling. The 18-inch wheels should be set to 1.75 bar (25 psi) in the front and 2.0 bar (28 psi) in the rear. Given the age of these machines, inspectors should prioritize checking the rim tape and inner tubes for degradation, as the 4PR (Ply Rating) tires are increasingly rare in modern inventories.
Technical FAQ
Q: Can I use synthetic 2-stroke oil?
A: Yes, high-quality synthetic 2-stroke oil is recommended for the Autolube system to reduce carbon buildup in the exhaust port and expansion chamber.
Q: What is the fuel mixing ratio if the Autolube pump fails?
A: If running premix, a ratio of 1:50 (2%) is standard for modern synthetic oils, though some vintage enthusiasts prefer 1:40 for added protection.
