| Specification | Value |
|---|---|
| Production Years | 1988 – 1994 |
| Engine Type | 1127cc SACS Air/Oil-Cooled Inline-4 |
| Oil Specification | SAE 10W-40 (API SF/SG) – 3.4 L |
| Spark Plug | NGK JR9B |
| Tire Sizes | F: 120/80-16 | R: 150/80-16 |
| Battery | YB14L-A2 |

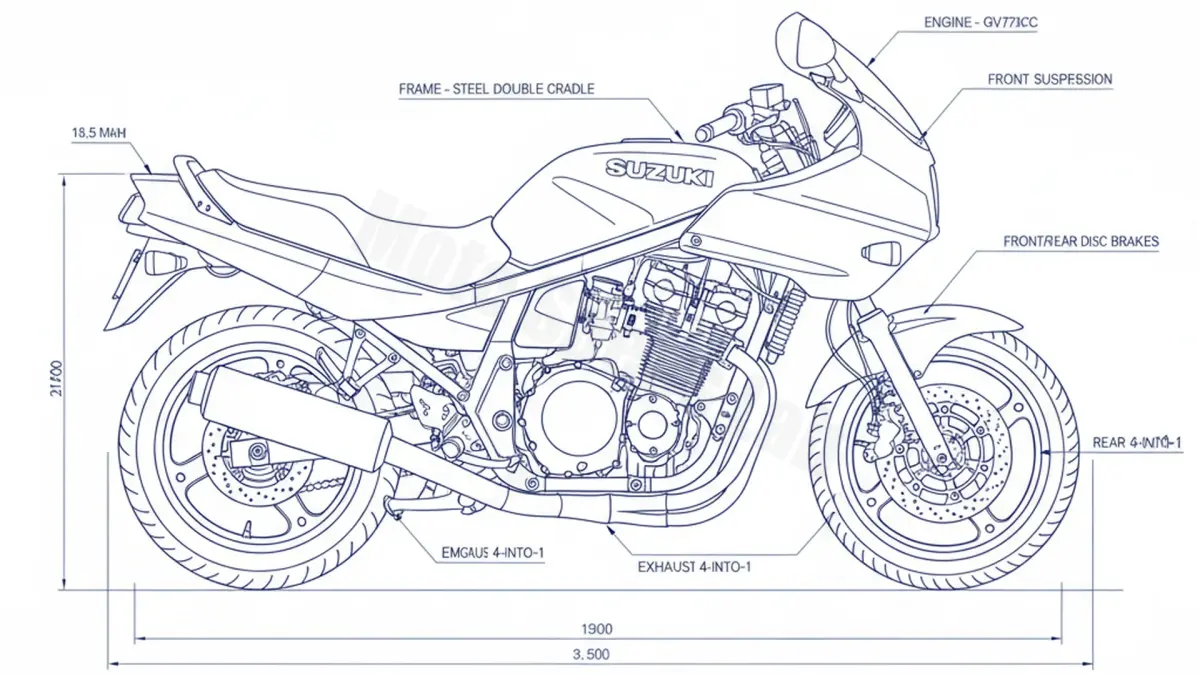

Engineering Highlight: The Suzuki GSX 1100 F (GV72C) achieved legendary status not just for its speed, but for being one of the first production motorcycles to feature an electrically adjustable windshield, known as the “Power Shield.” This innovation, paired with the bulletproof 1127cc SACS (Suzuki Advanced Cooling System) engine borrowed and retuned from the GSX-R1100, positioned the GV72C as a premier long-distance “autobahn burner.”
Technical Performance & Engine Architecture
At the heart of the GV72C lies the 1127cc inline-four engine. While the GSX-R variant was focused on peak horsepower, the GSX 1100 F was tuned for a broader torque curve, making it ideal for high-speed touring with a passenger. The SACS system uses high-volume oil jets to cool the cylinder heads, providing the reliability of air-cooling with the thermal stability of liquid-cooling.
Maintenance Guide
Lubrication System
For optimal engine longevity, MotoSpecsLab recommends SAE 10W-40 oil. It is critical to use oils meeting API SF or SG standards to ensure the internal components and wet clutch operate without slippage. The total capacity for an oil and filter change is 3.4 Liters.
Ignition and Electrical
The GV72C utilizes NGK JR9B spark plugs. Given the engine’s heat profile, ensuring the correct heat range is vital to prevent pre-ignition. The electrical system is supported by a YB14L-A2 lead-acid battery; owners should regularly check electrolyte levels to prevent premature failure.
Chassis and Tires
The GSX 1100 F features a unique 16-inch wheel setup both front and rear, which contributes to its agile low-speed handling despite its significant curb weight. Proper inflation is mandatory for stability at high speeds:
- Front: 120/80-16 60V at 2.25 bar (33 psi)
- Rear: 150/80-16 71V at 2.50 bar (36 psi)
Expert Verdict
The Suzuki GSX 1100 F (GV72C) remains a testament to late-80s over-engineering. It offers a unique blend of sport-bike heritage and touring comfort. While the 16-inch tire selection is more limited today than modern 17-inch standards, the bike’s mechanical robustness makes it a favorite for collectors and long-distance enthusiasts alike.
Frequently Asked Questions
Q: How often should I change the spark plugs?
A: We recommend inspecting the NGK JR9B plugs every 6,000 miles (10,000 km) and replacing them if there is significant electrode wear or fouling.
Q: Can I use synthetic oil?
A: Yes, provided it meets the API SF/SG requirements and does not contain friction modifiers that could cause the wet clutch to slip.
