| Specification | Value |
|---|---|
| Engine Type | Liquid-cooled, SOHC, Single Cylinder, 4-valves (VVA) |
| Oil Type | 10W-40 API SG / JASO MA (0.95 L) |
| Tire Size | F: 110/70-17 | R: 140/70-17 |
| Spark Plug | NGK CPR8EA-9 (0.8–0.9 mm gap) |
| Battery | YTZ6V |
While many entry-level retros rely on aesthetic nostalgia alone, the Yamaha XSR 125 Legacy (XSR125LEG/25) distinguishes itself through its Variable Valve Actuation (VVA) system—a sophisticated engineering feature typically reserved for high-performance, larger-displacement engines. This system utilizes a solenoid to switch between two intake cam lobes at 7,400 rpm, optimizing torque at low speeds and maximizing power delivery at high RPMs, ensuring the 125cc unit remains efficient yet potent across its entire rev range.

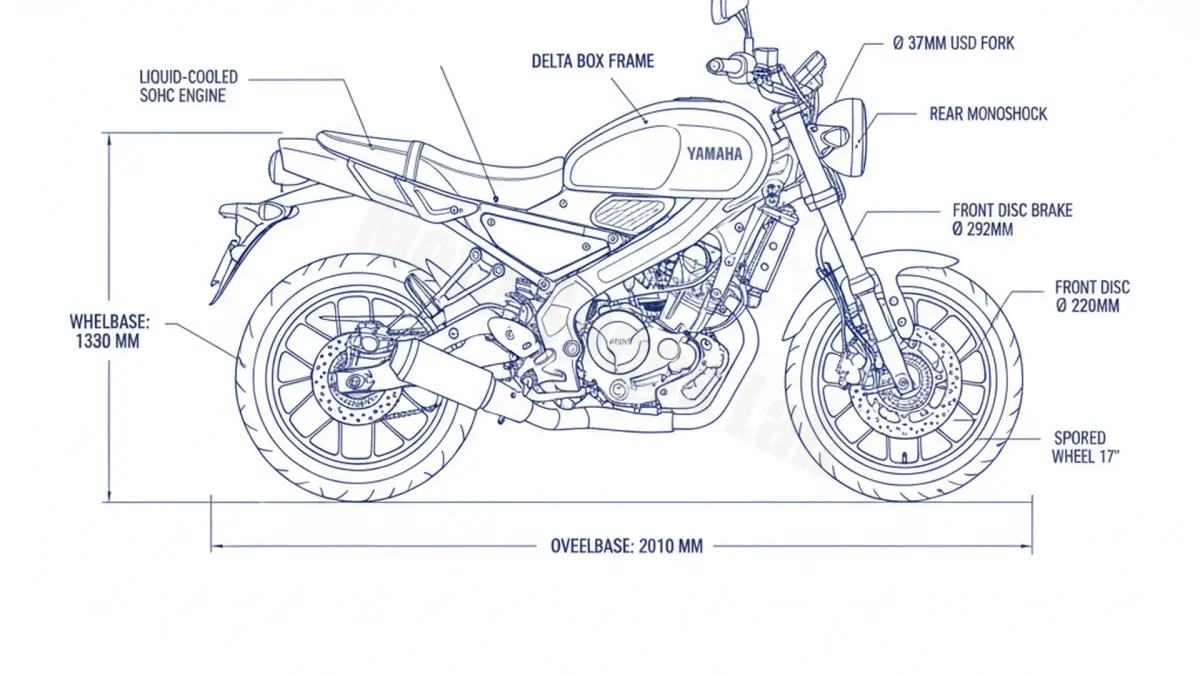

Engineering Analysis: The Sport Heritage Blueprint
The ‘Legacy’ variant elevates the standard XSR 125 platform by introducing lightweight gold-colored spoked wheels and Metzeler Karoo Street tires. From a technical perspective, these wheels provide a specific compliance profile that differs from the cast variants, offering a subtle improvement in vibration damping over irregular surfaces. The heart of the machine remains the Euro5-compliant, liquid-cooled single-cylinder engine, which produces a class-leading 11.0 kW (15 PS).
Maintenance Specifications & Fluids
To maintain the mechanical integrity of the VVA system and the high-compression top end, strict adherence to fluid specifications is mandatory for MotoSpecsLab standards.
- Engine Lubrication: Use 0.95 liters of 10W-40 oil. It must meet API SG service categories or higher and carry the JASO MA certification to ensure the wet clutch operates without slippage.
- Ignition System: The NGK CPR8EA-9 spark plug should be inspected for electrode wear. Ensure a precise gap of 0.8–0.9 mm to maintain combustion efficiency.
- Electrical System: The YTZ6V battery provides the necessary cold cranking amps for the electric starter. If the bike is stored, a smart charger is recommended to prevent voltage drops that can affect the ECU’s diagnostic sensors.
Chassis & Tire Management
The XSR 125 Legacy utilizes a specific tire combination for its scrambler-inspired aesthetic. For optimal handling and tread longevity, maintain a consistent pressure of 2.25 bar (33 psi) for both the 110/70-17 front and the 140/70-17 rear. Under-inflation on spoked rims can lead to sluggish steering and increased risk of rim damage on impact.
Technical FAQ
How often should the oil be changed?
While the manual suggests longer intervals, MotoSpecsLab recommends an oil and filter change every 3,000 to 5,000 km given the high-revving nature of the 125cc engine.
What makes the ‘Legacy’ different from the standard XSR 125?
The primary technical differences are the spoked wheels, specific Metzeler Karoo Street tires, and the unique ‘Historic Black’ livery with gold detailing.
