| Component | Specification |
|---|---|
| Production Years | 2001–2005 |
| Engine Type | 660cc, 4-Stroke, 5-Valve, Liquid Cooled |
| Engine Oil | SAE 10W-30 / 20W-40 (JASO MA) – 2.0 L |
| Spark Plug | NGK DPR8EA-9 |
| Tires (F/R) | F: AT21 x 7-10 / R: AT20 x 10-9 |
| Tire Pressure | 0.3 bar (4.0 psi) |
| Battery | GT12B-4 |

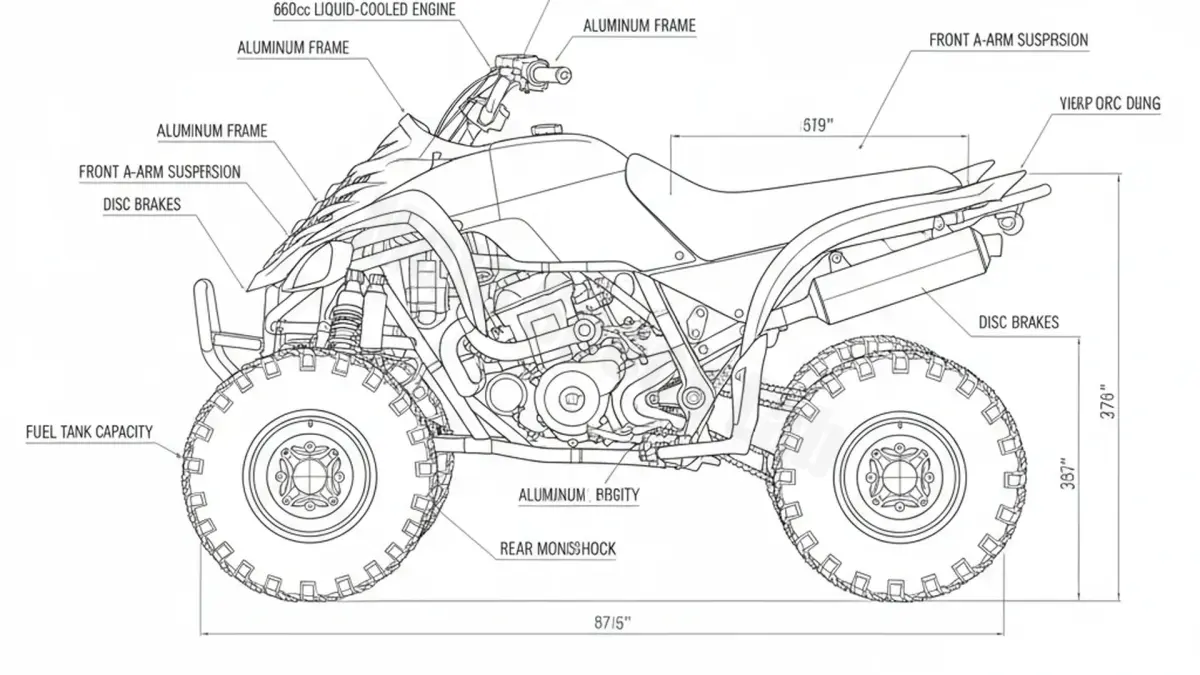

At its debut in late 2000, the Yamaha YFM 660 Raptor (AM01) shattered the sport ATV landscape by being the first production quad to utilize Yamaha’s proprietary Genesis 5-valve cylinder head technology. This engineering feat, borrowed from Yamaha’s high-performance superbikes, featured three intake and two exhaust valves, providing a volumetric efficiency that was previously unheard of in the off-road sector.
Engineering Analysis: The AM01 Powerhouse
The heart of the Raptor 660 is its 660cc liquid-cooled SOHC engine. Unlike its competitors of the era, the Raptor utilized dual Mikuni BSR33 carburetors to feed its complex valve train. This setup allowed for a broad torque curve, though it requires precise synchronization for optimal performance. The AM01 chassis was designed with a high center of gravity compared to modern standards, but its narrow profile made it a favorite for technical trail riding and dune carving.
Maintenance Guide: Professional Standards
Lubrication System
The YFM 660 utilizes a dry-sump lubrication system. For standard operation, 2.0 liters of high-quality engine oil are required. MotoSpecsLab recommends SAE 10W-30 for cooler climates or 20W-40 for high-ambient temperatures. It is critical to use oil with a JASO MA rating to ensure the wet clutch does not slip. Always check the oil level using the dipstick located on the external oil tank, not the crankcase.
Ignition and Electrical
The ignition system relies on an NGK DPR8EA-9 spark plug. Gapping should be maintained between 0.8–0.9mm. For starting reliability, the AM01 utilizes a GT12B-4 battery. Given the Raptor’s high-compression nature, maintaining a healthy battery is essential to prevent premature wear on the starter clutch, a known weak point in early 2001-2002 models.
Chassis and Footwear
To maintain the Raptor’s intended handling characteristics, tire pressure should be kept strictly at 0.3 bar (4.0 psi). Over-inflation leads to a reduction in the contact patch, causing the machine to feel ‘tippy’ in corners. The staggered tire setup (21-inch front / 20-inch rear) is optimized for clearing obstacles while maintaining drive traction.
Editorial Verdict
The Yamaha YFM 660 Raptor remains a benchmark in ATV history. While later 700cc fuel-injected models offered more refinement, the AM01’s raw power and mechanical complexity appeal to enthusiasts who value engineering heritage. Proper maintenance of the dual carbs and cooling system is the key to longevity for this high-performance machine.
Frequently Asked Questions
Q: How often should I change the oil?
A: For aggressive trail riding, we recommend every 20-30 operating hours. For casual use, once per season is sufficient, provided the 2.0L capacity is maintained.
Q: Why does my Raptor 660 struggle to find neutral?
A: This is often a symptom of using non-JASO MA oil or a clutch cable that requires adjustment to ensure full disengagement.
